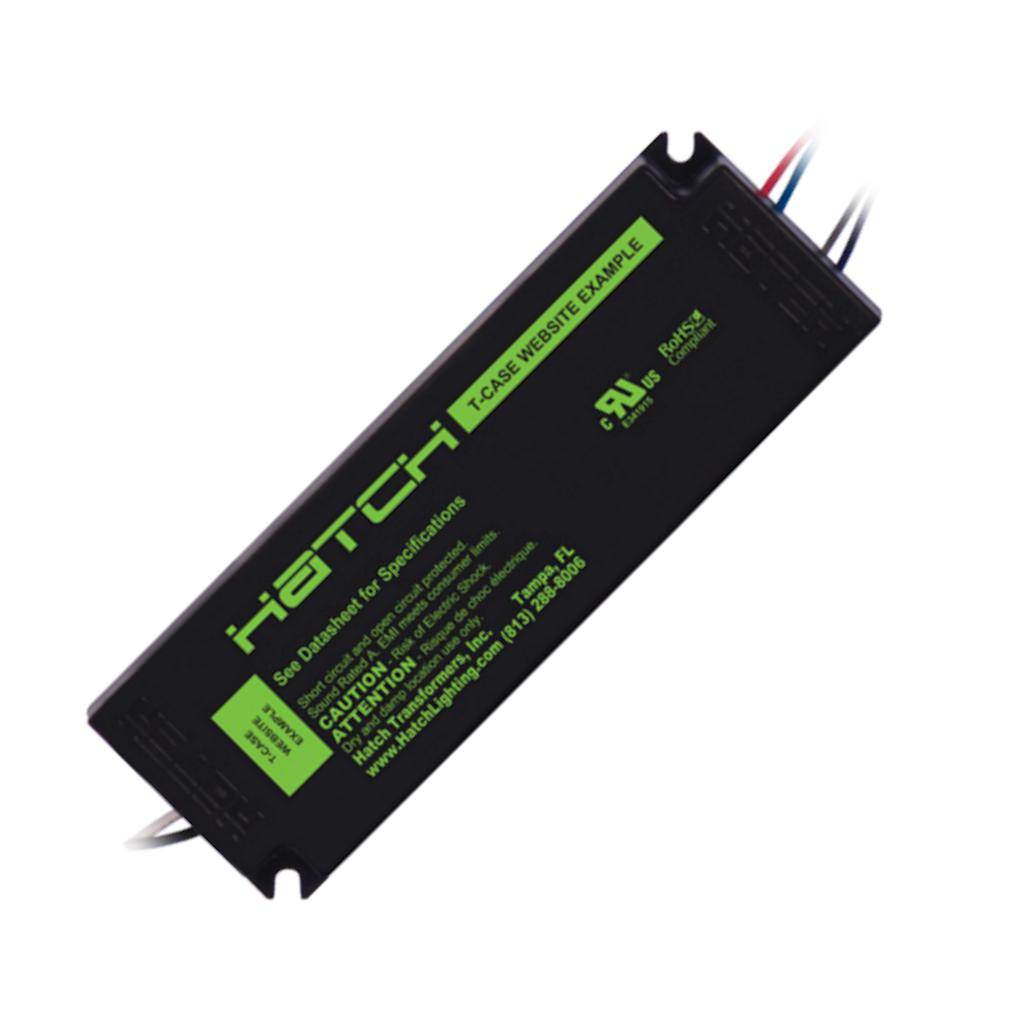

50 watt 120/277 volts Input Constant Current Dual Dimmable LED Driver 1
    50 watt 120/277 volts Input Constant Current Dual Dimmable LED Driver 1
50 watt 120/277 volts Input Constant Current Dual Dimmable LED Driver 1
50 watt 120/277 volts Input Constant Current Dual Dimmable LED Driver 1
    50 watt 120/277 volts Input Constant Current Dual Dimmable LED Driver 1
50 watt 120/277 volts Input Constant Current Dual Dimmable LED Driver 1

About

Specs
SKUHC00000
ManufacturerHatch
Manufacturer Part #LC50-1050D-UNV-T
Manufacturer DescriptionLC50-1050D-UNV-T
UPC Code797281662521
Case Size6
Watts50
Volts120/277
Length5.4
Height1.3
Width1.8
Additional SpecsPower Factor, >0.90, Input Current, 0.50/0.24A, Output Voltage, 24-48 VDC, Efficiency, 85%, Input Frequency, 50/60Hz
Features0-10V dimming range: 10%-100%, Short circuit and overload protection, Over temperature protection on dual dimming models, Suitable for dry and damp locations, Withstanding voltage: I/P – O/P 2kVAC, Surge Rating: 2kV L-N, Operating temperature range: -40°C to 90°C (measured at Tcase), MTBF: 235000 hours at 40°C ambient (, 70°C Case Temperature), Inrush Current: <20A Max @230VAC cold start 25°C, Dual dimming: 0-10V (10%) and reverse phase only, Output Current tolerance +/- 5% @ 25°C
Warranty text

~5 Year Limited

Files
Spec Sheet

LC50_T_Spec_122121.pdf

Hatch logo Hatch

PART NUMBER: HC00000

Hatch 50 watt 120/277 volts Input Constant Current Dual Dimmable LED Driver

50 watt - 120/277 volts - 1050mA - Constant Current - Class 2 - Electronic - Dual Dimmable

MPN#: LC50-1050D-UNV-T

Ships within 1 – 2 business days

$64.99
$64.99
$64.99
Shipping calculated at checkout.

Works with
approved dimmers
