About

Specs
SKUEK15135
ManufacturerEiko
Manufacturer Part #15135
Manufacturer DescriptionLHS1-PS160-8FCCT-VDIM
UPC Code031293151353
Case Size1
LumensSelectable
WattsSelectable
Volts277/480
Color TempSelectable
Color FinishWhite
CRI80
Life100000
Beam Angle95
Length24
Width15
Additional SpecsEfficacy, 150 LpWLumens, 24000/19500/16500/13500
Features10’/600V rated power cord, 6.5’ aircraft cable with V hooks, Surge Protection: 6kV included, PowerSET – 4 Power settings, FieldCCeT – 2 CCT settings (4000/5000K)
ApplicationsWarehouses, Manufacturing Plants, Distribution Centers, Grocery Stores, Gymnasiums, Indoor Recreational Facilities, Cold Storage, Big Box Retail, Service Repair Centers
Warranty text

~5 Year Limited

Files
Instructions

1721664528141_LHS1InstallationEN_FR_SP_20_1.pdf

Spec Sheet

1722879343153_LHS1SpecSheet.pdf

Eiko logo Eiko

PART NUMBER: EK15135

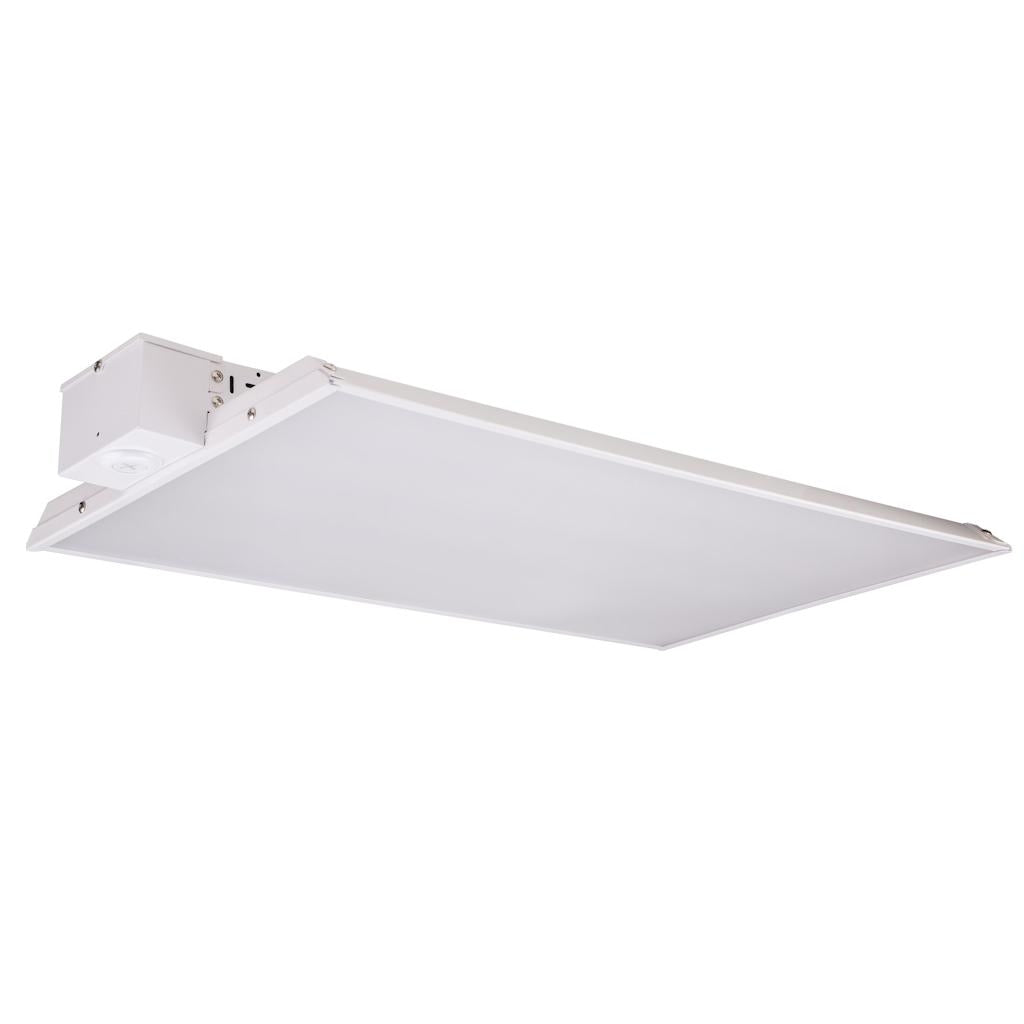

Eiko 1' x 2' 90/110/130/160 watt 277/480 volt CCT Selectable Dimmable LED High Bay

1' x 2' - 90/110/130/160 watt - 277/480 volt - 4,000K/5,000K - CCT Selectable - White - Linear - Frosted - Dimmable

MPN#: 15135

Ships in 7 – 10 business days

$165.19
$165.19
$165.19
Shipping calculated at checkout.

Works with
