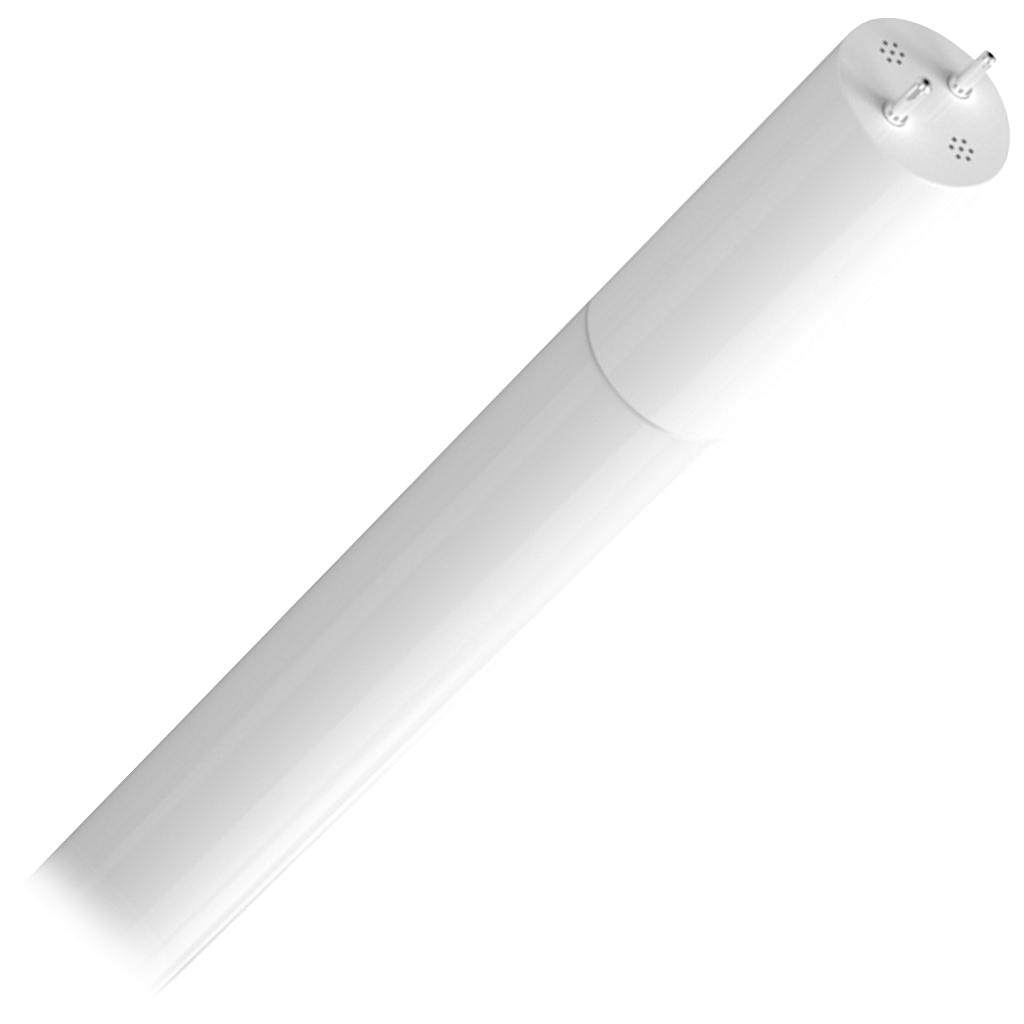

12 watt 120/277 volt 48" T8 Medium Bi-Pin Base 5000K Daylight Dimmable LED Tube 1

12 watt 120/277 volt 48" T8 Medium Bi-Pin Base 5000K Daylight Dimmable LED Tube 2

About

Specs

SKUEK12934

ManufacturerEiko

Manufacturer Part #12934

Manufacturer DescriptionL12WT8/48/ABSDG/850

UPC Code031293129345

Case Size25

Power InputDual Technology (Ballast / Direct Wire)

Lumens1800

Watts12

Incandescent Replacement Watts32

Volts120/277

Color Temp5000

Color FinishDaylight

CRI80

Life50000

Bulb TypeT8

Base TypeMedium Bi-Pin (G13)

Beam Angle330

Length48

Width1.1

Additional SpecsEfficacy, 150 LpW

FeaturesLED T8 Type A+B Dual Mode, Glass material for better light transmission, Frosted glass lens reduces visual glare and provides optimal heat dissipation, Works with the existing fluorescent ballast (Type A) or bypassing theballast and wiring directly to line voltage (Type B)

ApplicationsSuitable for use in totally enclosed fixtures, Highbays, Troffers, Industrial strips, Cove lighting, Warehouses, Stairwells, Cold storage

Warranty text

~5 Year Limited

Files

Instructions

1672930241715_LEDT8TypeABInstall.pdf
