SKUEK10795
ManufacturerEiko
Manufacturer Part #10795
Manufacturer DescriptionLED25WT8/96/850-DBL-G7D
UPC Code031293107954
Case Size10
Power InputBallast Bypass / Direct Wire
Lumens3500
Watts25
Volts120/277
Color Temp5000
Color FinishDaylight
CRI80
Life50000
Base TypeSingle Pin (Fa8)
Beam Angle210
Length96
Width1.1
Additional SpecsLpW, 140Equivalent, 59W T8; 60/75W T12
FeaturesOperating temperature is -4°F to 113°F (-20°C to 45°C), Double-ended single contact base – same as T8 and T12 lamps, Simple installation; bypass ballast connect line voltage to single-pin sockets, Frosted lens for uniform diffuse appearance, No ballast or external driver required, Instant-on with no warm up like fluorescents, Integral 120, 277V drivers provide easy installation, Does not operate on emergency backup
ApplicationsCommercial, Conference rooms, Hospitality, Education, Healthcare, Retail, Residential
Warranty text
Files
Installation Instructions
Eiko_2010794_20Instructions.pdf
Spec Sheet
Eiko
PART NUMBER: EK10795

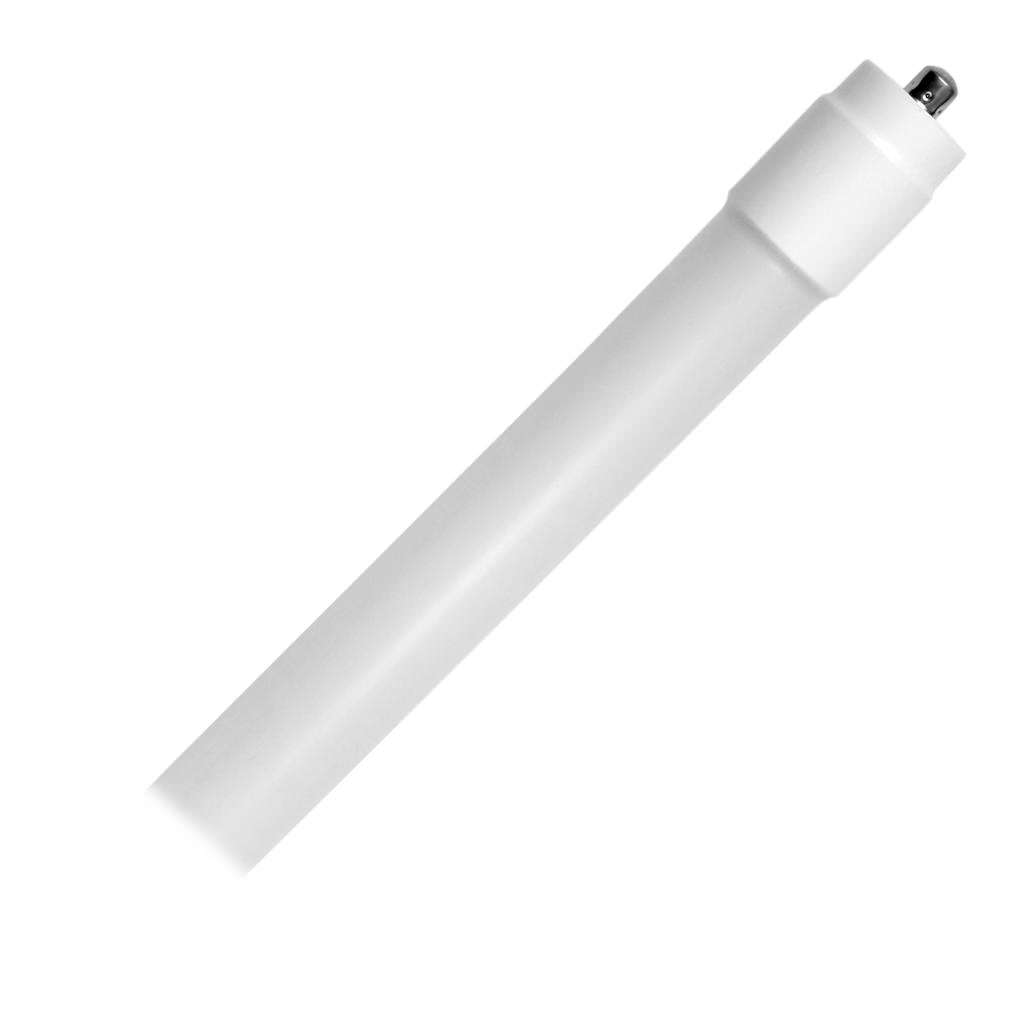

Eiko 96" 3500 Lumens 5000K Ballast Bypass LED Tube
25 watt - 120/277 volt - 96" - T8 - Single Pin (Fa8) Base - 5,000K - Daylight - Frosted - Ballast Bypass - Double Ended - Non-Dimmable
MPN#: 10795
Ships in 7 – 10 business days
