About
Specs
SKUEK10485
ManufacturerEiko
Manufacturer Part #10485
Manufacturer DescriptionLED36WT8/96/865-DS-G8
UPC Code031293104854
Case Size10
Power InputBallast Bypass / Direct Wire
Lumens4600
Watts36
Volts120/277
Color Temp6500
Color FinishDaylight
CRI80
Life50000
Bulb TypeT8
Base TypeRecessed Double Contact (R17d)
Beam Angle330
Length96
Width1.1
Additional SpecsLpW, 128
FeaturesBuilt-in universal line voltage driver, Operating temperature is -22°F to 113°F (-30°C to +45°C)
ApplicationsSigns, Retrofits, Light boxes, Backlighting, Commercial, Retail
Warranty text
Files
Installation Instructions
Eiko_2010478_20Instructions.pdf
Spec Sheet
Eiko
PART NUMBER: EK10485

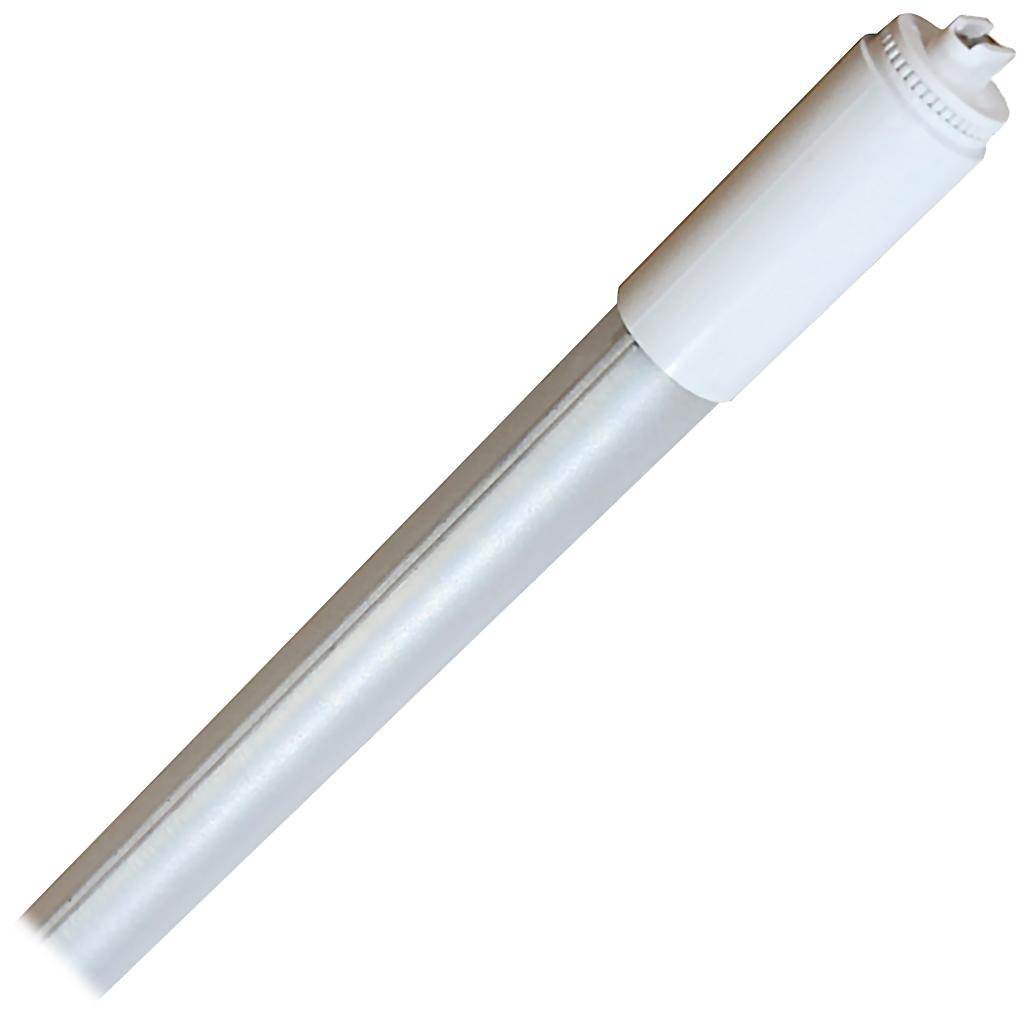

Eiko T8 96" 4600 Lumens 6500K Ballast Bypass LED Tube
36 watt - 120/277 volt - 96" - T8 - Recessed Double Contact (R17d) Base - 6,500K - Daylight - Sign Lamp - Ballast Bypass - LiteSpanLED® - Non-Dimmable
MPN#: 10485
Ships within 1 – 2 business days
- Regular price
- $42.89
- Sale price
- $42.89
- Regular price
-
$42.89
Shipping calculated at checkout.
