About
Specs
SKUEK09553
ManufacturerEiko
Manufacturer Part #09553
Manufacturer DescriptionLED11WT5HO/22/835-G7DR
UPC Code031293095534
Case Size30
Power InputBallast Compatible / Plug and Play
Lumens1350
Watts11
Incandescent Replacement Watts24
Color Temp3500
Color FinishNeutral White
CRI80
Life50000
Bulb TypeT5
Base TypeMiniature Bi-Pin (G5)
Beam Angle185
Length22
Width.63
FeaturesDirectly replaces T5 fluorescent lamps, No socket changes; for use with non-shunted socketed fixtures, Operates on most popular electronic programmed start fluorescent T5 ballasts, No rewiring or modifications of any kind required, Frosted glass lens reduces visual glare, Environment-friendly no mercury or lead classified as non-hazardous waste, Does not operate on magnetic ballasts, Does not operate on T8 or T12 ballasts, Does not operate on dimming ballasts, Does not operate on fluorescent battery backup
ApplicationsHighbays, Troffers, Industrial Strips, Cove Lighting, Vapor Tights, Warehouses, Stairwells, Cold Storage
Warranty text
Files
L-57B_20LitespanLED_R_20T5_20Direct_20Fit_20G7DR_20web.pdf
Installation Instructions
Eiko
PART NUMBER: EK09553

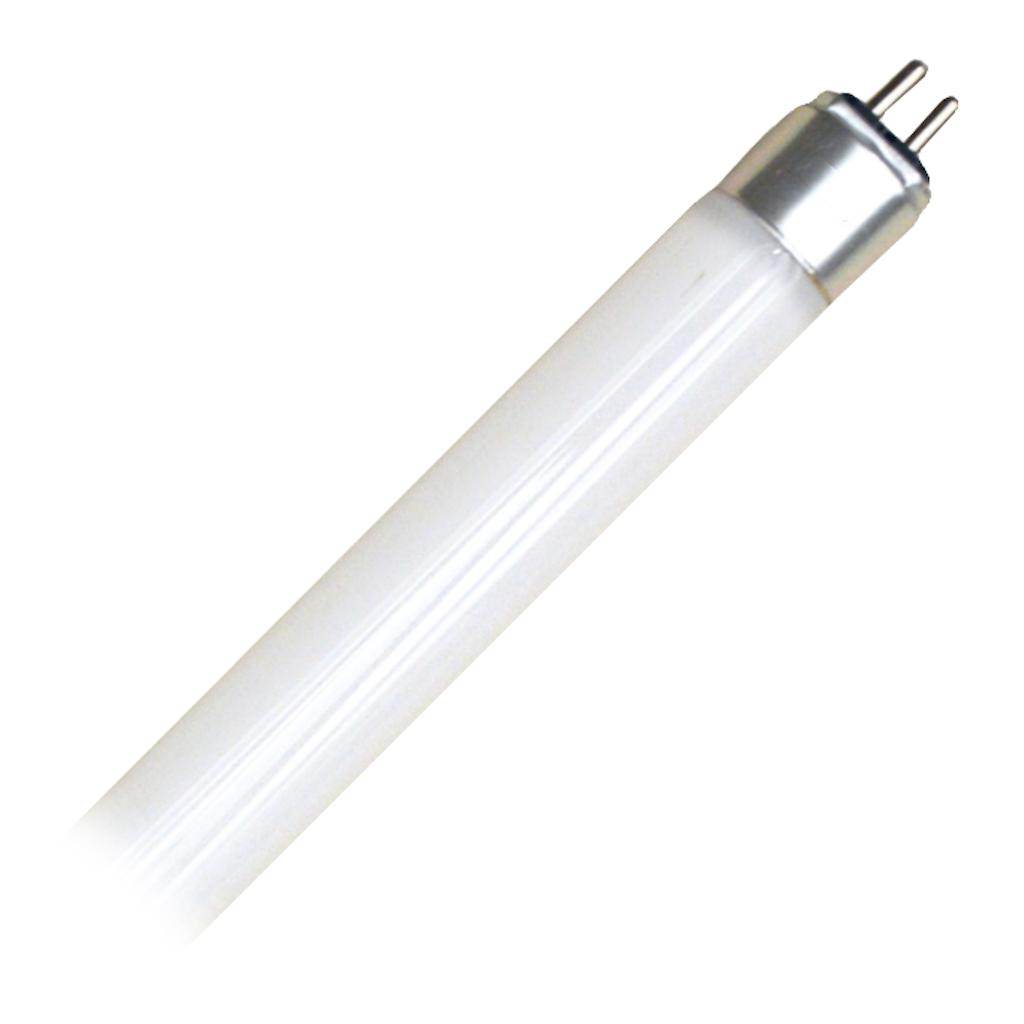

Eiko T5 22.2" 1350 Lumens 3500K Ballast Compatible LED Tube
11 watt - 24" - T5 - Miniature Bi-Pin (G5) Base - 3,500K - Neutral White - Frosted - Glass - Ballast Compatible - LiteSpanLED - Non-Dimmable
MPN#: 09553
Ships within 1 – 2 business days
- Regular price
- $17.59
- Sale price
- $17.59
- Regular price
-
$17.59
Shipping calculated at checkout.
