About
Specs
SKUCO40691
ManufacturerCooper
Manufacturer Part #HLB4069FS1EMWR
Manufacturer DescriptionHALO HLB4 4" LED LENS DOWNLIGHT WITH REMOTE DRIVER / JUNCTION BOX
UPC Code080083848140
Case Size6
ShapeRound
Housing Size4"
Lumens600
Watts12
Volts120
Color TempSelectable
Color FinishWhite
CRI90
Additional SpecsEfficacy, 60 LpW
FeaturesIP44 rated, Contains no mercury or lead, Die-cast aluminum mounting frame with integral flange provides passive thermal cooling, Achieves L70 at 50000 hours in IC and non-IC applications, High impact diffuse lens provides shielding to the light guide minimizing pixilation, Closed cell gasket achieves restrictive airflow and wet locations listing without additional gaskets or caulking, Precision acrylic light guide organizes source flux into wide distribution with 1.4 spacing criteria useful for general area illumination, Plurality of mid power LED’s provides a uniform source with high efficiency and long life, Pre-galvanized steel driver/junction box with captive hinged junction box cover, Listed for six #12 AWG 90° C splice conductors: two in two out plus two ground, Two 1?2" conduit pry-outs, Two Slide-N-Side™ non-metallic (NM) wire traps allows wiring outside the box, Accepts NM cable types: 14-2 14-3 12-2 12-3 (U.S.) and 14-2 14-3 12-2 (Canadian), Three 4-port push wire nuts with clear caps for quick and reliable mains voltage connections, Integral mounting holes facilitate direct mounting to building structure or mounting frame
ApplicationsSuitable for wet locations, Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements
Warranty text
Files
Spec Sheet
HLB4.pdf
Cooper
PART NUMBER: CO40691

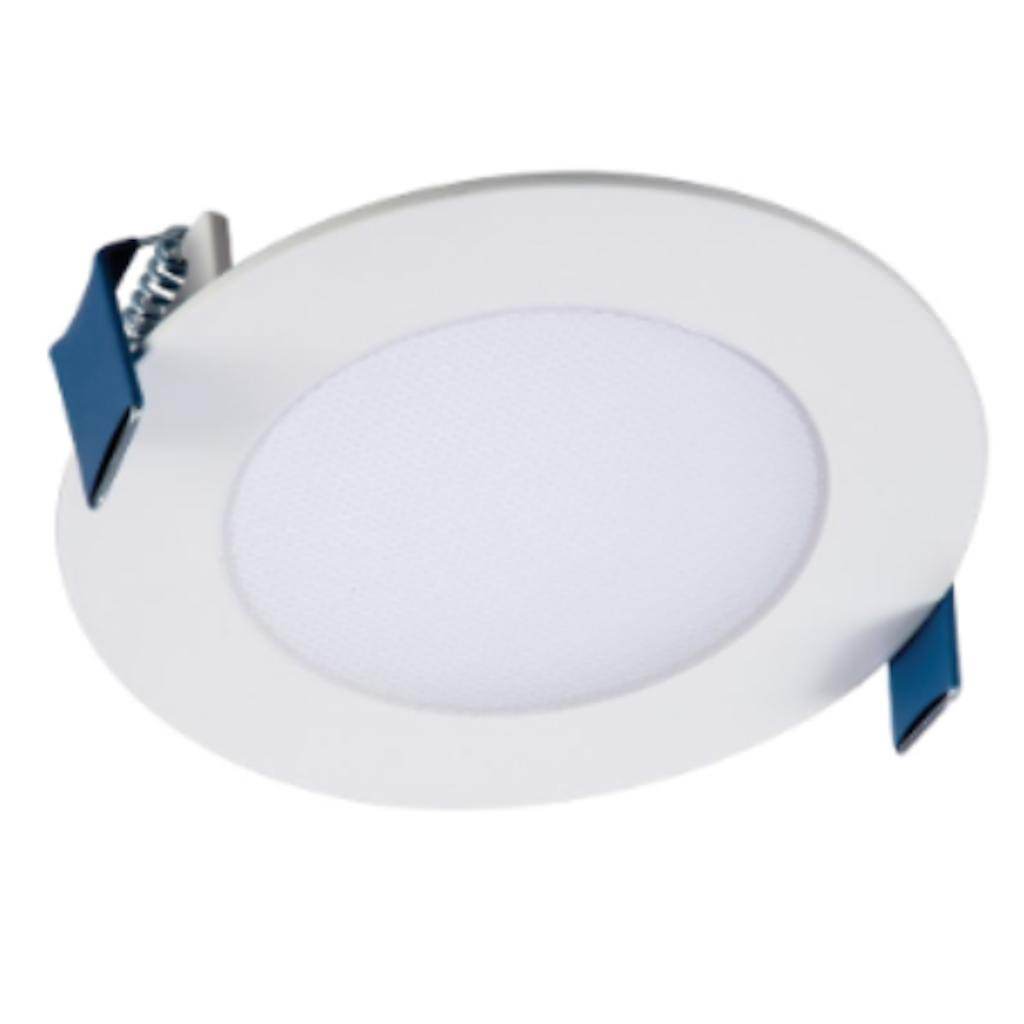

Cooper 4" 12 watt 120 volt 2700K-5000K LED Downlight with Remote Driver and Junction Box
4" - 12 watt - 120 volt - 2,700K-5,000K - Remote Driver - Junction Box - Aluminum Frame - Dimmable
MPN#: HLB4069FS1EMWR
Ships in 7 – 10 business days
- Regular price
- $39.99
- Sale price
- $39.99
- Regular price
-
$39.99
Shipping calculated at checkout.
Product Note
Optional field selectable color temperature, select 2700K, 3000K, 3500K, 4000K or 5000K CCT; color accuracy within 4 SDCM
