About
Specs
SKUAS01578
ManufacturerAmerican Lighting
Manufacturer Part #ADPT-DRJ-30-12
Manufacturer DescriptionADPT-DRJ-30-12
UPC Code714176015781
Case Size6
Volts100/277
Additional SpecsMounting, Mounting foot at both ends allows for screw down upon flat surfaceOutput Current at Max Load, 2.5AMaximum Load, 30WMinimum Load, 3WInput Current at Max Load, 0.5A @100V ACFrequency Range, 47-63Hz
FeaturesClass 2 dimmable low-profile constant voltage driver in 12V DC, Dimmable with standard TRIAC MLV and ELV dimmers, Forward phase and reverse phase compatible, Short circuit over-load and over-temperature protections, Slim compact aluminum housing design (only 1.02” tall), Integrated wiring compartment, PWM Output with 10-100% load operation, Free air convection cooling, Class 2 Class P Type HL FCC compliant cULus Listed, Operating temperature of -40°F to 140°F (-40°C to 60°C)
ApplicationsSuitable for damp locations, Suitable for LED lighting
Warranty text
Files
Spec Sheet
specsheet_adpt-drj.pdf
American Lighting
PART NUMBER: AS01578

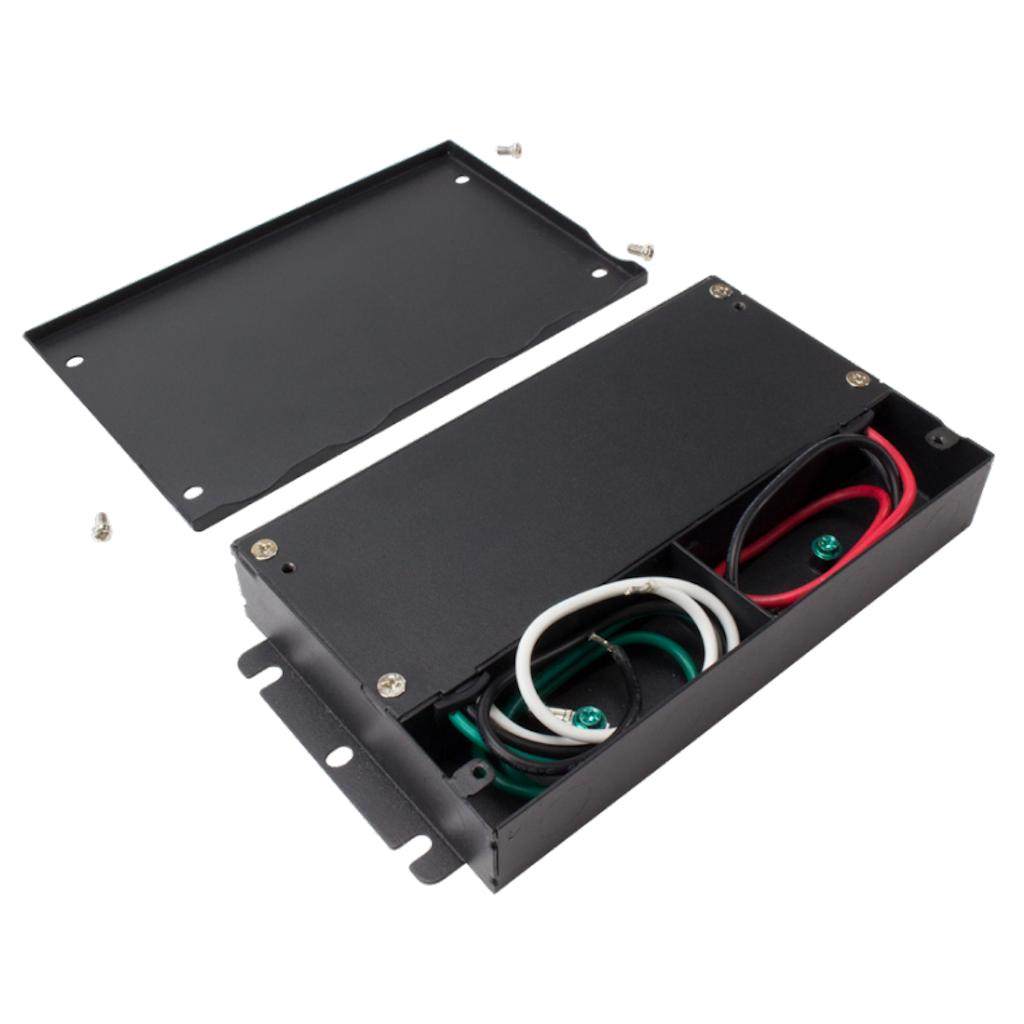

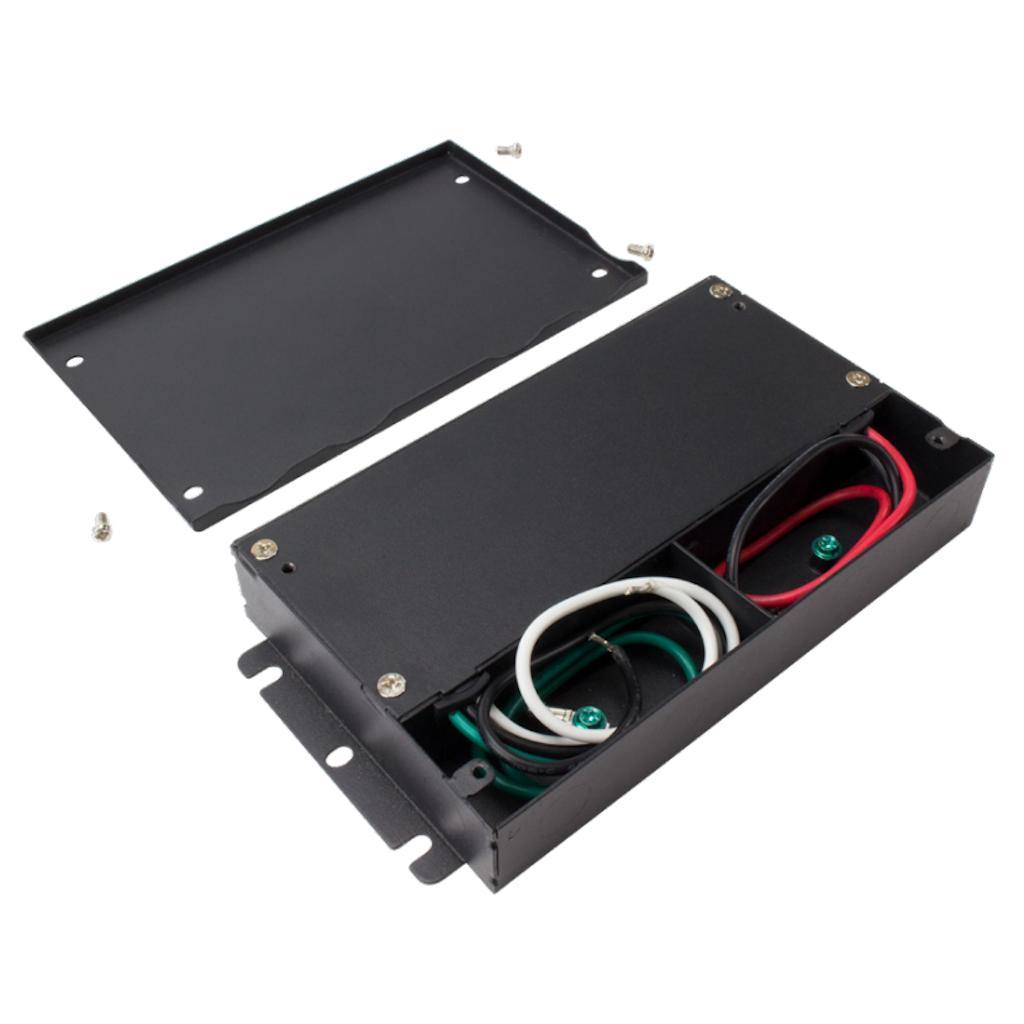

American Lighting 30 watt Maximum 12 output voltage 100/277V input voltage Driver with Junction
30 watt Maximum - 12 output voltage - 100/277V input voltage
MPN#: ADPT-DRJ-30-12
Ships in 7 – 10 business days
- Regular price
- $87.99
- Sale price
- $87.99
- Regular price
-
$87.99
Shipping calculated at checkout.
