SKUAS01464
ManufacturerAmerican Lighting
Manufacturer Part #LED-DR8-24
Manufacturer DescriptionLED-DR8-24
UPC Code714176014647
Case Size20
Volts100/240
Length2.9
Height0.9
Width1.2
Additional SpecsMounting, Set upon flat surface or house in an enclosureRated Current, 1.25AMax Load, 8W (non-dimming); 5W (dimming*)Minimum Load, 1W (non-dimming); 1W (dimming*)Frequency Range, 50/60Hz
Features24V DC constant voltage hardwire driver; 8W capacity, Non-dimmable on primary side; Utilize secondary side for Trulux™ controls or PWM dimming, Universal AC input / Full Range, Protections: Over Current / Short Circuit / Over Voltage / Over Temperature, Built-in constant current limiting circuit, Fully isolated plastic case with IP42 design, Class 2 Class II (no FG), Input via 5” 18AWG conductors, Output via 5” 20AWG conductors, Operating temperature of -22°F to 158°F (-30°C to 70°C)
ApplicationsSuitable for indoor locations, Suitable for LED lighting
Warranty text
Files
Spec Sheet
specsheet_powersupply_led-dr8.pdf
American Lighting
PART NUMBER: AS01464

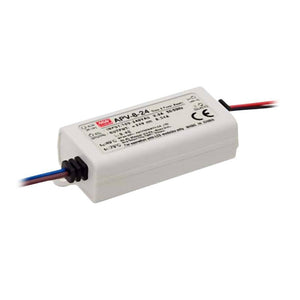

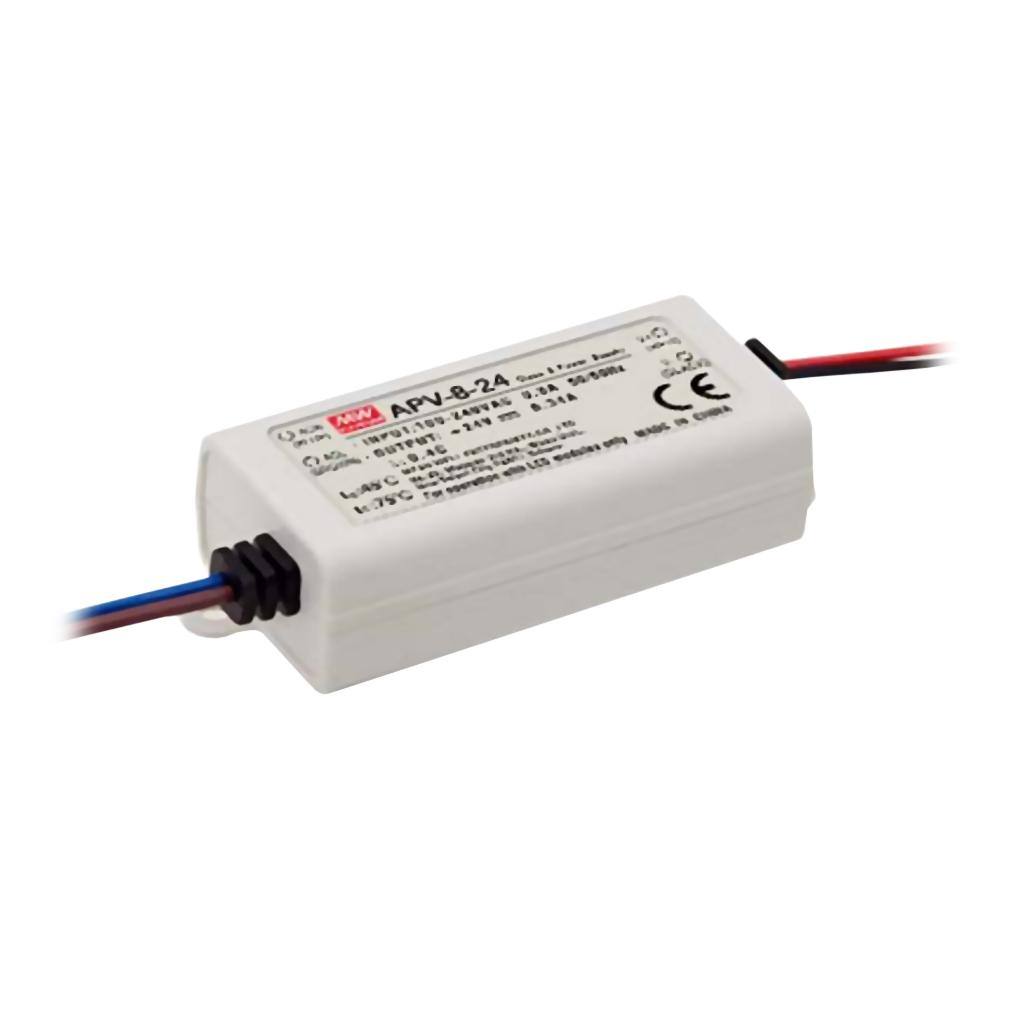

American Lighting 8 watt maxium 24 volt output 100/240 volt input Class 2 Driver
8 watt Maximum - 24 volt output - 100/240 volt input - Dimmable - Class 2
MPN#: LED-DR8-24
Ships in 7 – 10 business days
