About
Specs
SKUAS01380
ManufacturerAmerican Lighting
Manufacturer Part #CCV-DR100-24
Manufacturer DescriptionCCV-DR100-24
UPC Code714176013800
Case Size6
Watts100
Volts24
Length9
Height1.5
Width2.7
Additional SpecsMounting, Mounting feet at both ends allows for screw down upon flat surfaceRated Current, 4AMinimum Load 1W, (non-dimming); 40W (dimming)Input Voltage Range, 90-305V ACFrequency Range, 47, 63HzEfficiency, 93%Dimming, 1-10V DC 10V PWM signal and resistanceOver Current Protect, 95-106% Constant current limiting recovers automatically after fault condition is removedInput Wire, 11 18AWG SJTW x3COutput Wire, 11 18AWG SJTW x2C or 11 14AWG x2C
FeaturesHiccup mode recovers automatically after fault condition is removed, Over Voltage Protect: 28 - 34V Shut down o/p voltage with auto-recovery or re-power on to recover, Over Temp Protect: Shut down o/p voltage recovers automatically after temp goes down, Operating Temp T-case: -40°F to 194°F (-40°C to 90°C) General ambient temperature max: 140°F (60°C), IP65 Rated, Constant voltage + Constant current modes, 3-in-1 dimming capable: 1, 10VDC 10V PWM and resistance dimming, Maximum wattage output up to 100W, Built-in active Power Factor Correction (PFC), Class 2 design and IP65 rating, Metal Housing with Class I design, Auto-reset protection for short circuit and over-voltage, cURus Listed to UL8750 Standard “Type HL” & CSA C22.2
ApplicationsSuitable for dry and wet locations
Warranty text
Files
Spec Sheet
specsheet_powersupply_ccv-dr100.pdf
American Lighting
PART NUMBER: AS01380

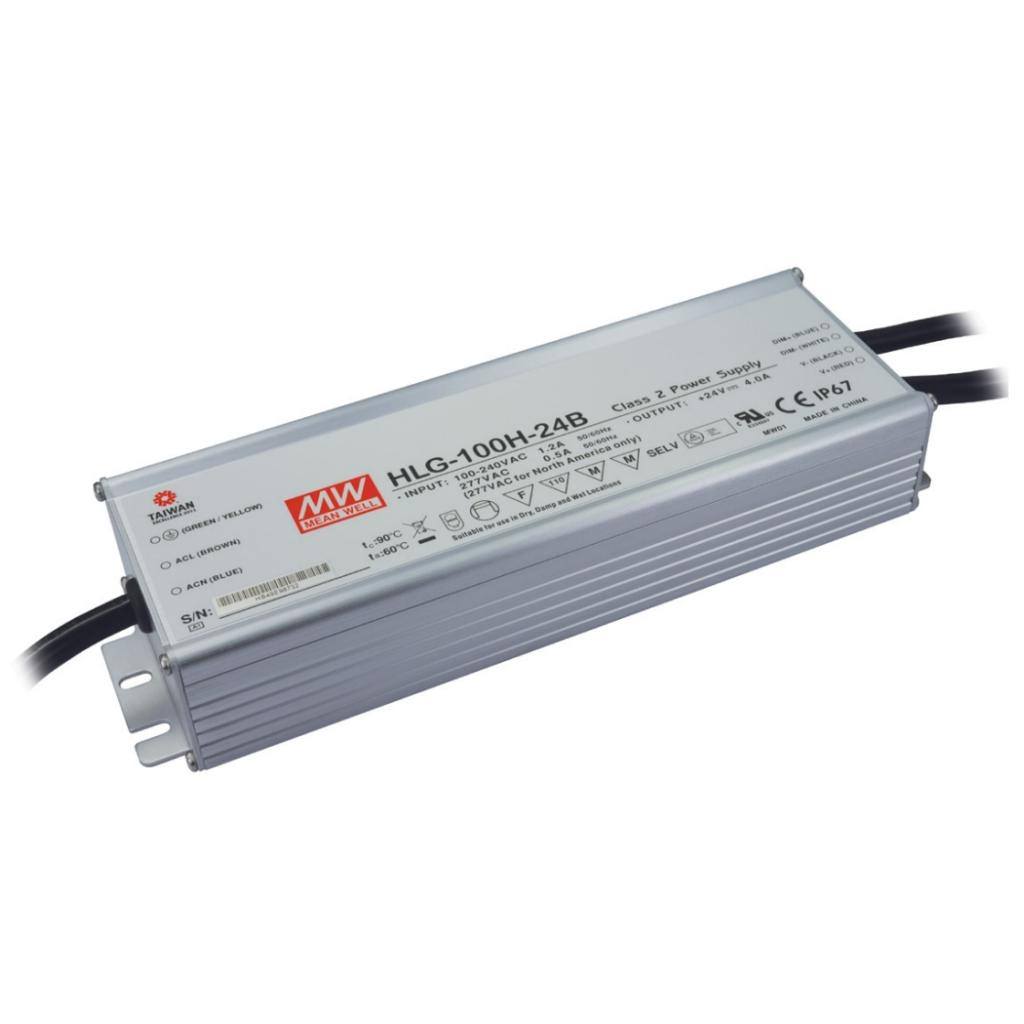

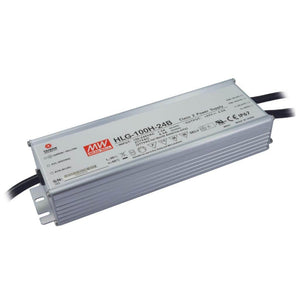

American Lighting 100 watt 24 volt Dimmable LED Driver
100 watt - 24 volt - Dimmable
MPN#: CCV-DR100-24
Ships in 7 – 10 business days
- Regular price
- $169.39
- Sale price
- $169.39
- Regular price
-
$169.39
Shipping calculated at checkout.
