About
Specs
SKUAS00198
ManufacturerAmerican Lighting
Manufacturer Part #ELV-80J-24
Manufacturer DescriptionELV-80J-24
UPC Code714176001982
Case Size20
Volts100/130
Color FinishBlack
Additional SpecsDimming, Dimmable with most standard leading edge dimmers (MLV Incandescent TRIAC) and trailing edge dimmers (aka 2-wire reverse phase ELV)Mounting, Use built-in mounting tabs for attaching to flat surfaceMaximum Load, 80WMinimum Load, 1W (non-dimming); 48W (dimming)Input Current at Max Load, 1.02AOutput Current at Max Load, 3.33A

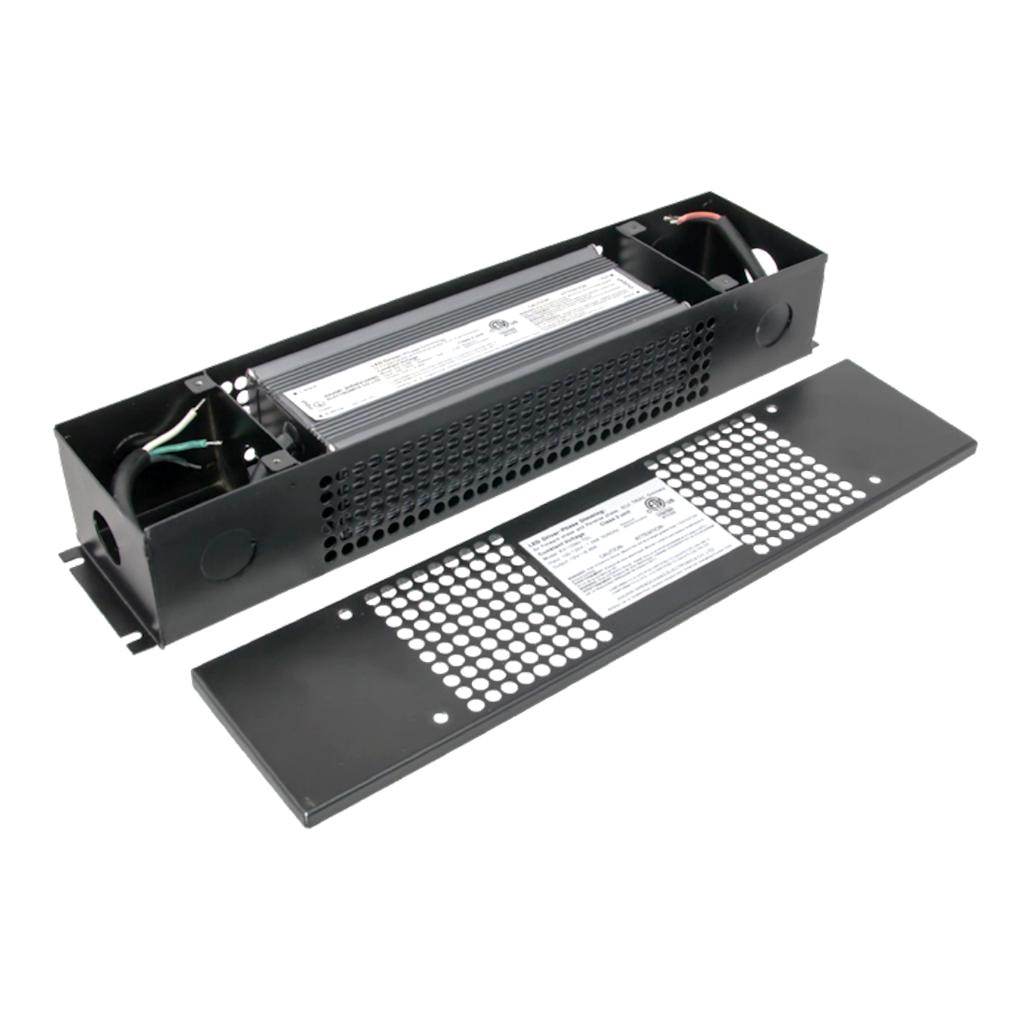

FeaturesOver Current Protect, Short Circuit Protect, Over Voltage Protect, Over Temp Protect, Class 2 24V constant voltage driver inside metal housing, 1/2” knockouts on both primary and secondary ends, cETLus Listed (Wet locations), Input via 5” 18AWG SJOW x3C conductors, Output via 5” 18AWG SJOW x2C conductors, FCC Compliant, Operating temperature ranges from -22°F to 122°F (-30°C to 50°C)
ApplicationsSuitable for LED lighting, Suitable for indoor and outdoor applications, Suitable for wet locations
Files
Spec Sheet
specsheet_powersupply_elv-wetlocation.pdf
American Lighting
PART NUMBER: AS00198
American Lighting 80 watt Maximum 24 Output Voltage LED Driver
80 watt Maximum - 24 Output Voltage - 100/130 Input Voltage
MPN#: ELV-80J-24
Ships in 7 – 10 business days
- Regular price
- $148.19
- Sale price
- $148.19
- Regular price
-
$148.19
Shipping calculated at checkout.
