About

Specs
SKUAB00000
ManufacturerAdvance
Manufacturer Part #XH180C090V285BSF1
Manufacturer DescriptionXH180C090V285BSF1
UPC Code781087000007
Case Size6
Watts180
Volts347/480
Length8.3
Height1.5
Weight2.1
Width2.3
FeaturesProgrammable output current through SimpleSet, Large operating window, 6kV combi-wave surge rating to comply with ANSI C82.77-5 CAT C low, Enables long life luminaire designs, Fast and simple way of programming, Enables fixture designs with wide variety of loads and adjustable current options, No external surge protection required to pass C82.77-5 CAT C low, Short Circuit Open Circuit Protection for LED + and LED – and Temperature Foldback
ApplicationsArea, Roadway, Parking garages, Floodlights, High-bay
Files
Spec Sheet

Advance_20Xitanium_20180W_200_90A_20347-480V_20Outdoor_20LED_20Driver_20with_20SimpleSet_20Datasheet_20XH180C090V285BSF1_20_Pad-1535DS.pdf

Advance logo Advance

PART NUMBER: AB00000

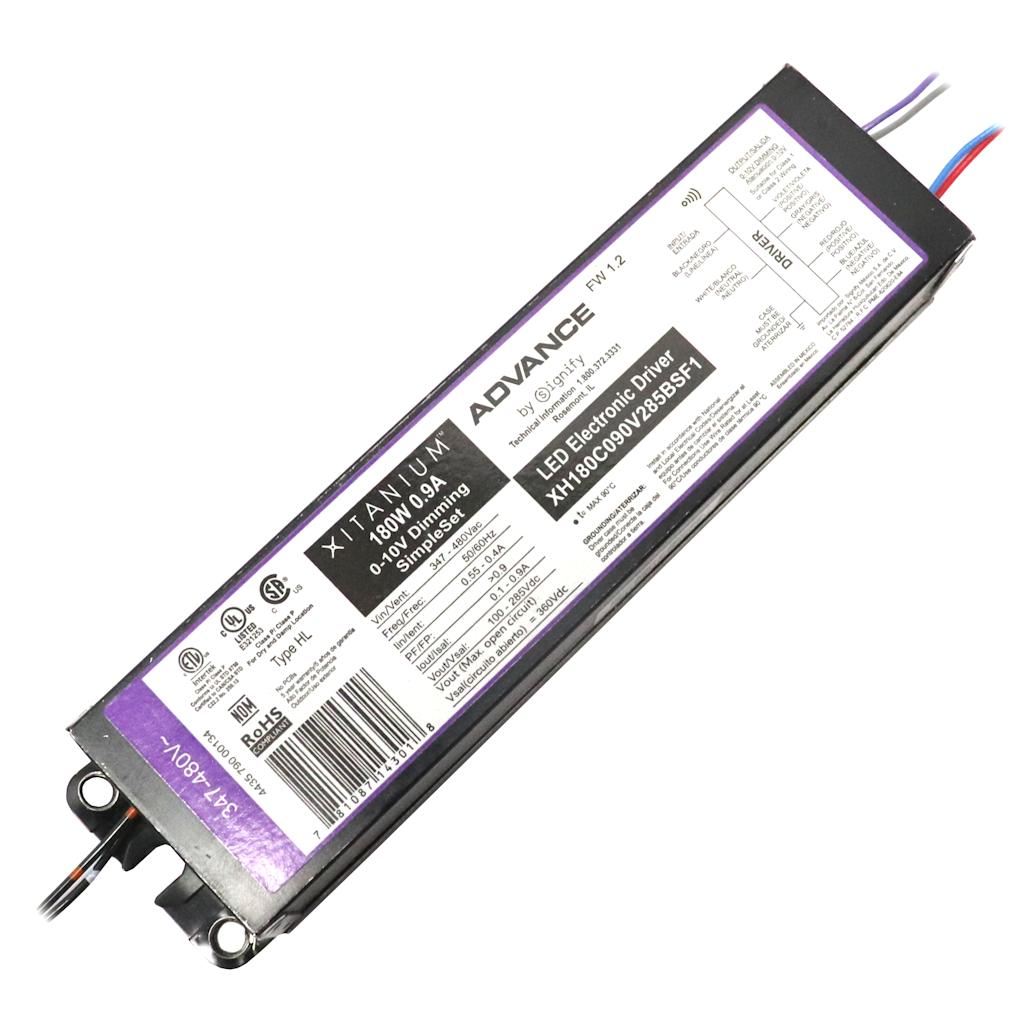

Advance 180 watt 347/480 volt Dimmable LED Driver

180 watt - 347/480 volt - SimpleSet - Dimmable

MPN#: XH180C090V285BSF1

Ships in 7 – 10 business days

$117.19
$117.19
$117.19
Shipping calculated at checkout.

Works with
approved dimmers
