10 watt 120/277 volt 36" T8 Medium Bi-Pin Base CCT Selectable Dimmable LED
Click to view larger photo
Keystone Ballasts

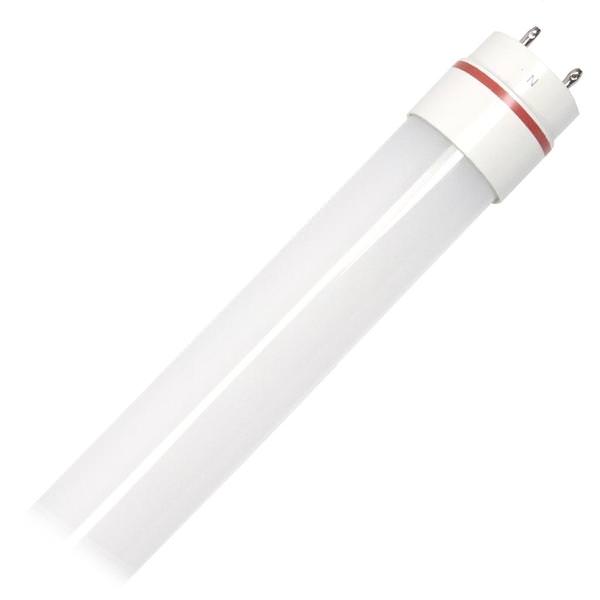

Keystone LED Light Bulb (15613 / KT-LED10T8-36G-8CSJ-X3)

10 watt - 120/277 volt - 36" - T8 - Medium Bi-Pin (G13) Base - 3,000K/3,500K/4,000K/5,000K/6,500K - CCT Selectable - Ballast Compatible - High Efficiency - Combo Drive X3 - Dimmable

$15.79
  Retail: $24.31
Quantity:
Should ship by September 16
Design Lights Consortium QUALIFIED
UL Classified
UL Recognized
RoHS Compliant
Works with
approved dimmers
Ballast Compatible /
Plug and Play
Details
Part #: KT15613
Manufacturer: Keystone
Manufacturer Part #: 15613
Manufacturer Description:

KT-LED10T8-36G-8CSJ-X3

UPC Code: 843654156132
Case Size: 25    ($394.75/Case)
The pricing of $15.79 is per item, not per case
Power Input: Ballast Compatible / Plug and Play
Light Output: Selectable lumens
Energy Used: 10 watts
Average Lifetime: 50,000 hours
Volts: 120/277
Bulb Type: T8
Base Type: Medium Bi-Pin (G13)
Color / Finish: Selectable
Color Temperature: Selectable
CRI: 80
Length: 36 inches
Width: 1.1 inches
Beam Angle: 240°
Lumens: 1500-1600
Efficacy: 150-160 LpW
Features
Plug & Play application: Compatible with most instant- and programmedstart electronic T8 ballasts
Bypass ballast application: Runs on 120–277 line voltage wired Single- or double-ended
Compatible with most instant- and program-start electronic T8 ballasts.
Keystone Color Select technology (3000/3500/4000/5000/6500K)
Instant startup
Manufacturer's Warranty
10 Year
Related Documents
Spec Sheet
