27/36/45 watt 120/277 volt Exclusionary Mogul Screw Base CCT Selectable Non-Dimmable LED
Click to view larger photo
Keystone Ballasts

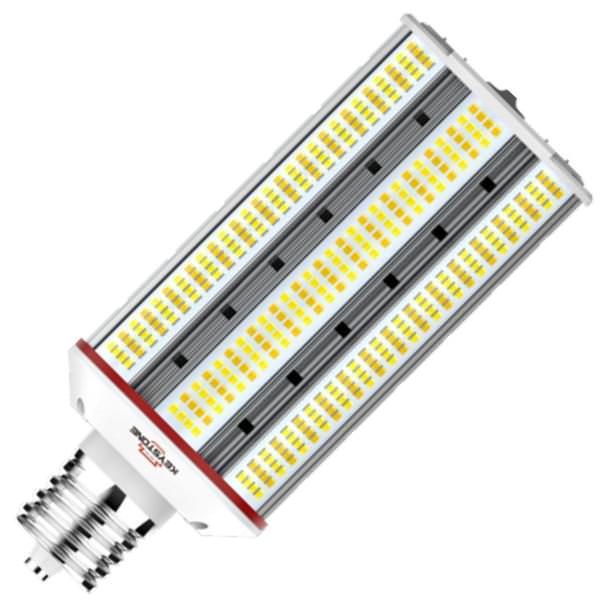

Keystone LED Retrofit Lamp (13890)

27/36/45 watt - 120/277 volt - Corn Cob - Exclusionary Mogul Screw (EX39) Base - 3,000K/4,000K/5,000K - CCT Selectable - Power Select - Color Select - DirectDrive Series - Rotatable Base - Non-Dimmable

$110.09
  Retail: $151.14
Quantity:
Should ship by September 19
Design Lights Consortium QUALIFIED
UL Listed
RoHS Compliant
Replaces a 175 watt
Incandescent Bulb
Ballast Bypass /
Direct Wire
Details
Part #: KT13890
Manufacturer: Keystone
Manufacturer Part #: 13890
Manufacturer Description:

KT-LED45PSHID-H-EX39-8CSB-D

UPC Code: 843654138909
Case Size: 12    ($1,321.08/Case)
The pricing of $110.09 is per item, not per case
Power Input: Ballast Bypass / Direct Wire
Light Output: Selectable lumens
Energy Used: Selectable watts (replaces 175 watts)
Average Lifetime: 50,000 hours
Volts: 120/277
Base Type: Exclusionary Mogul Screw (EX39)
Color / Finish: Selectable
Color Temperature: Selectable
CRI: 80
Length: 9.3 inches
Width: 3.6 inches
Height: 3.2 inches
Beam Angle: 180°
Lumens: 4185-6975
Efficacy: 147-161 LpW
Applications
Suitable for use in a fully enclosed fixture
Ideal for wall pack retrofit applications
Features
Optimized for horizontal applications, ideal for wall pack retrofits
Environmentally friendly: No mercury used
Instant startup
Integral driver eliminates the need for external driver or legacy ballast; includes 4kV surge protection
Not for use with standard dimmers; see instructions
Manufacturer's Warranty
5 Year
Related Documents
Spec Sheet
