8" Selectable watt 120/277 volt CCT Selectable White Power Select Dimmable LED
Click to view larger photo
Click to watch video
Keystone Ballasts

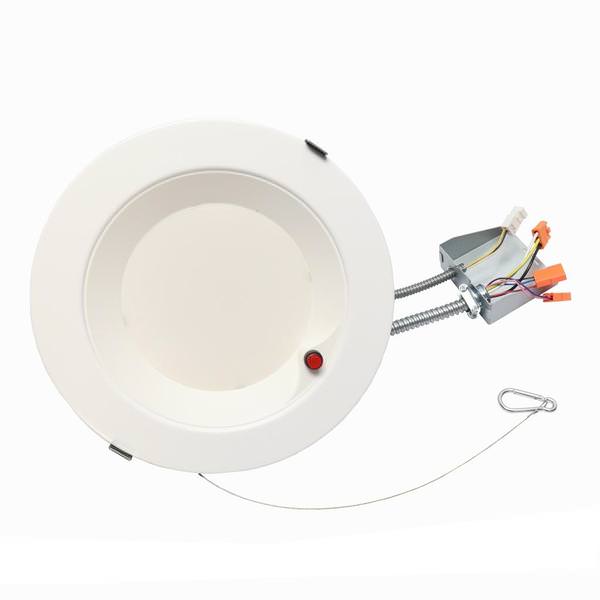

Keystone LED Downlight (13731)

8" - 14/17/20 watt - 120/277 volt - 3,000K/3,500K/4,000K - CCT Selectable - White - Power Select - SmartSafe Emergency Driver - Dimmable

$306.69
  Retail: $403.81
Quantity:
Should ship by September 15
Energy Star QUALIFIED
RoHS Compliant
Works with
approved dimmers
Buying this for a business?
Let one of our lighting consultants help you out with options and pricing discounts!
Details
Part #: KT13731
Manufacturer: Keystone
Manufacturer Part #: 13731
Manufacturer Description:

KT-RDLED20PS-8A-9CSE-VDIM-EM5
UPC Code: 843654137315
Recessed Housing: 8"
Shape: Round
Light Output: Selectable lumens
Energy Used: Selectable watts
Average Lifetime: 50,000 hours
Volts: 120/277
Color / Finish: White
Color Temperature: Selectable
CRI: 90
Length: 10.25 inches
Width: 10.25 inches
Height: 4.25 inches
Beam Angle: 100°
Efficacy: 76-84 LpW
Lumens: 1120-1680
Power Factor: >0.90
Applications
Ideal for hospitality
Retail
Office
Retrofit and new construction applications
Features
Keystone Power Select and Color Select technologies offer SKU reduction and allow for easy, on-the-job adjustments
Designed with junction box and quick disconnects for easy installation
Complete, pre-wired emergency downlight solution—including test button—removes all typical guesswork, uncertainty, and complex installation issues from battery backup downlight applications
Built-in 5W LED Keystone SmartSafe emergency driver that is compliant with CEC T20
Battery uses LifePO4 technology
Ideal for new construction, remodel, and retrofit applications
Smooth reflector trim offers clean, modern appearance
Diffused lens reduces glare
Interchangeable trims available in matte black, brushed nickel, and bronze
Powered by Keystone 0-10V dimming LED driver; 10-100% dimming
Ambient operating temperature: 0ºC/32ºF to 40ºC/104ºF
Suitable for use in dry and damp locations
Airtight and Type IC-rated
THD: <20%
LED chip lifetime: L70 >80,000 hrs
25ºC/77ºF ambient fixture temp
FCC Part 15, Subpart B, Class B
Manufacturer's Warranty
5 Year
Related Documents
Spec Sheet
Video Demonstration
